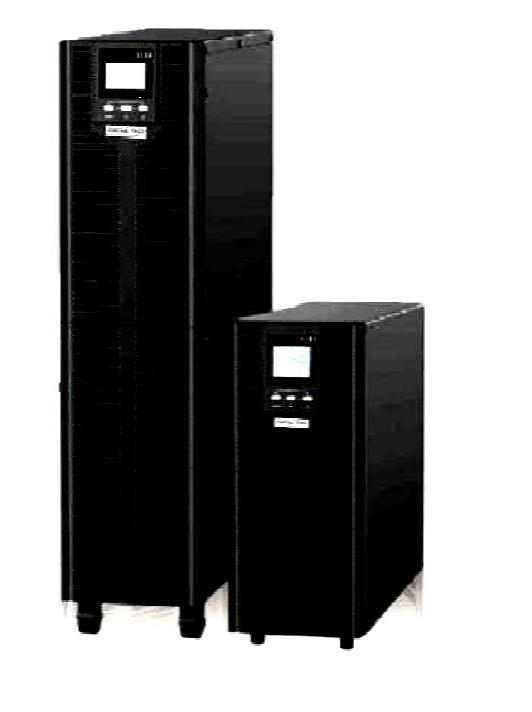

LX (IT) Series Single Phase UPS 1KVA-3KVA

⚡ UPS

LX (IT) Series Single Phase UPS 1KVA-3KVA

Perpetual Power LX (IT) Series is a high-efficiency, single-phase UPS solution designed specifically for critical power applications across diverse sectors. Delivering up to 90% active power output and achieving efficiency as high as 96.54%, the LX IT Series offers reliable, cost-effective performance with minimal energy loss. Built with a focus on advanced architecture, the LX (IT) Series combines Active Battery Management (ABM) technology and a user-friendly design to ensure superior reliability, easy operation, and extended backup performance. Whether used in IT infrastructure, medical systems, telecom, or other mission-critical environments, the LX IT Series stands out for its exceptional quality, smart energy management, and long-lasting power delivery.

📞 Get Quote

Key Features

High-Frequency Online Double Conversion Technology Provides true isolation and uninterrupted, clean power delivery.
DSP (Digital Signal Processor) Control Technology Enables real-time system control with enhanced accuracy and performance.
Active Power Factor Correction
Output Power Factor 0.9 – 1.0 delivers more usable power for connected equipment.
Wide Input Voltage Range: 110–300VAC Operates effectively under varying utility conditions.
Input Frequency Range: 40–70 Hz Suitable for fluctuating frequency environments.
Auto Frequency Sensing Automatically detects and adjusts to 50/60 Hz power sources.
Frequency Conversion Function Supports 50Hz/60Hz conversion as needed.
Cold Start Capability Allows the UPS to start directly on battery without utility power.
Rear Ventilation Design & Variable Speed Fan Enhances cooling efficiency and reduces noise.
Advanced Battery Management (ABM) Prolongs battery life and improves backup performance.
Quick & Stable Charging Restores up to 90% battery capacity in 4 hours (standard models).
Linear Derated at Low Input Voltage Minimizes unnecessary battery discharges and extends battery service life.
Settable Delayed Start on Mains Recovery Reduces load impact on the generator or grid upon power restoration.
LCD Control Panel with Multi-Function Settings Easily configures output voltage, EOD (End of Discharge), auto-start, bypass mode, ECO mode, and frequency conversion mode.
Multiple Communication Interfaces Standard: RS232 Optional: USB, RS485, SNMP, AS400 dry contacts, EPO function, SMS alarms
Optional 12A High Current Charger (Available for 1–3 KVA models)
