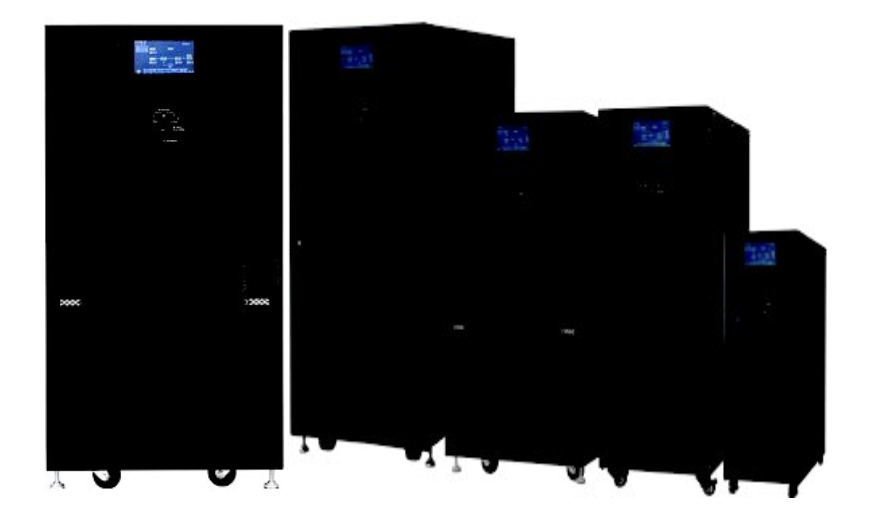

PT33 Series
Perpetual Power presents the PT Series Online UPS-a high-performance, fully digital uninterruptible power supply featuring advanced DSP (Digital Signal Processing) control technology. The system utilizes an online double-conversion topology to ensure maximum power reliability. Its DC/AC conversion is based on SPWM (Sinusoidal Pulse Width Modulation) technology, utilizing high-efficiency IGBT power modules and an output isolation transformer for enhanced performance and protection.
Key Features
- Double Benchmark designed power System.
- Reliability and safety Protection.
- Superior Generator compatibility.
- ABM Technology Strong load capacity and no switching time needed during the output.
- Power Supply Mode : 3-phase in & 3-phase out,
- Pluggable power module design with front access to decrease MTTR, parallel redundancy capability for power guarantee.
- Parallel operation with common battery.
- Power walk-in function.
- Dual-mains inputs.
- Built-in 4 switches including Mains input, bypass input, output and maintenance bypass switch.
- Flexible battery configuration and adjustable charging current.
- Output power factor 1.
- Active power factor correction in all phases.
- Built-in 7" touch LCD screen for comprehensive information.
- Emergency power off function(EPO).
- 50Hz/60Hz frequency converter mode.
📄 Product Documents
PT series 100-200KVA

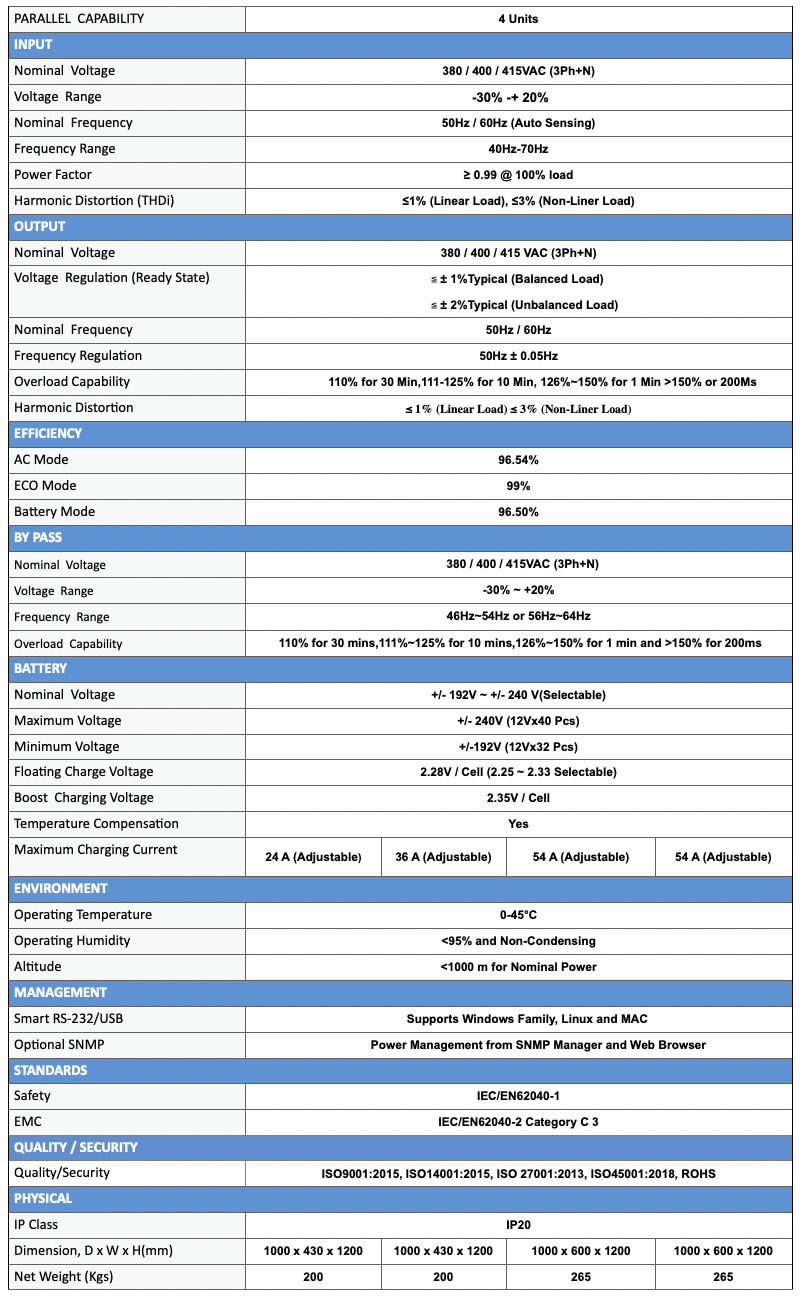

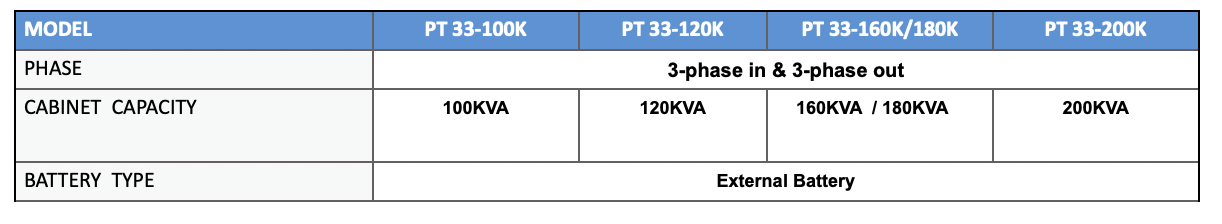

Specification Sheets
