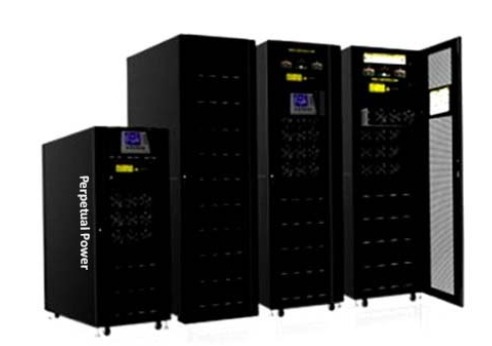

PPM Series Modular UPS 20 KVA - 1200 KVA

Perpetual Power proudly presents the PPM Series, a true double-conversion online industrial UPS built on the advanced PPM platform. Drawing upon decades of expertise in power electronics across sectors such as highways, tunneling, manufacturing, and the energy industry, the PPM Series is engineered for demanding environments. Our products are engineered with next-generation technology, designed to support the vision of a greener, more sustainable world. Since our inception, our core values have been centered and customer satisfaction.

Key Features

  • High efficiency online double conversion technology, power is applied with online double conversion technology to reach its high performance over 96.54% at 100% load. It significantly reduces overall Total cost of Ownership (TCO).
  • High scalability DSP control provides an improved solution with high performance Integrated with modular design and parallel technology. Power simplifies future power expansion.
  • Unity Output power factor Power delivers unity output power (KVA=KW) providing the maximum power capacity to mission critical loads. It satisfies the requirements of the latest servers and optimizes IT investment with every penny.
  • Modular design lowers MTTR modular design is applied in power module. STS module and battery module. It will simplify maintenance and replacement with low MTTR (Mean Time to Repair/Recovery).
  • Ease of installation and maintenance built in maintenance bypass assures continuous power to critical loads during UPS maintenance. Besides to facilitate installation and maintenance, all panel control and connectors are front accessibility.
  • Flexible battery configuration adapts different applications. Battery numbers can be adjusted flexibly. It will adapt different power demands and shorten system down time. Battery voltage can be set from 32 to 40 pieces per string.
  • Highly reliable operation with redundant power supply in STS, power provides 2 power supplies in STS, ensuring no risk of shutdown.
  • User adjustable charging current power provides maximum 8A or 6A charging current for every power module and its user adjustable based on requirement.
  • High over load capability power supports 110% overload for 30 minutes, 125% for 10 minutes and 150% for 1 minute.
  • Scalable architecture allows you to optimize cost expense to meet power demands by vertically expanding in a single rack enclosure from 30KVA to 300 KVA and achieve N+1 or N+X redundancy in the same rack + Power also supports horizontal expansion by 1+1 cabinet parallel operation.
  • Graphics 5.7” LCD design for easy management designed for easy management the intuitive design of 5.7” graphic LCD display enhances the read ability of identified and advance configuration.

📄 Product Documents

PPM UPS

Other 5.79 MB

Specification Sheets

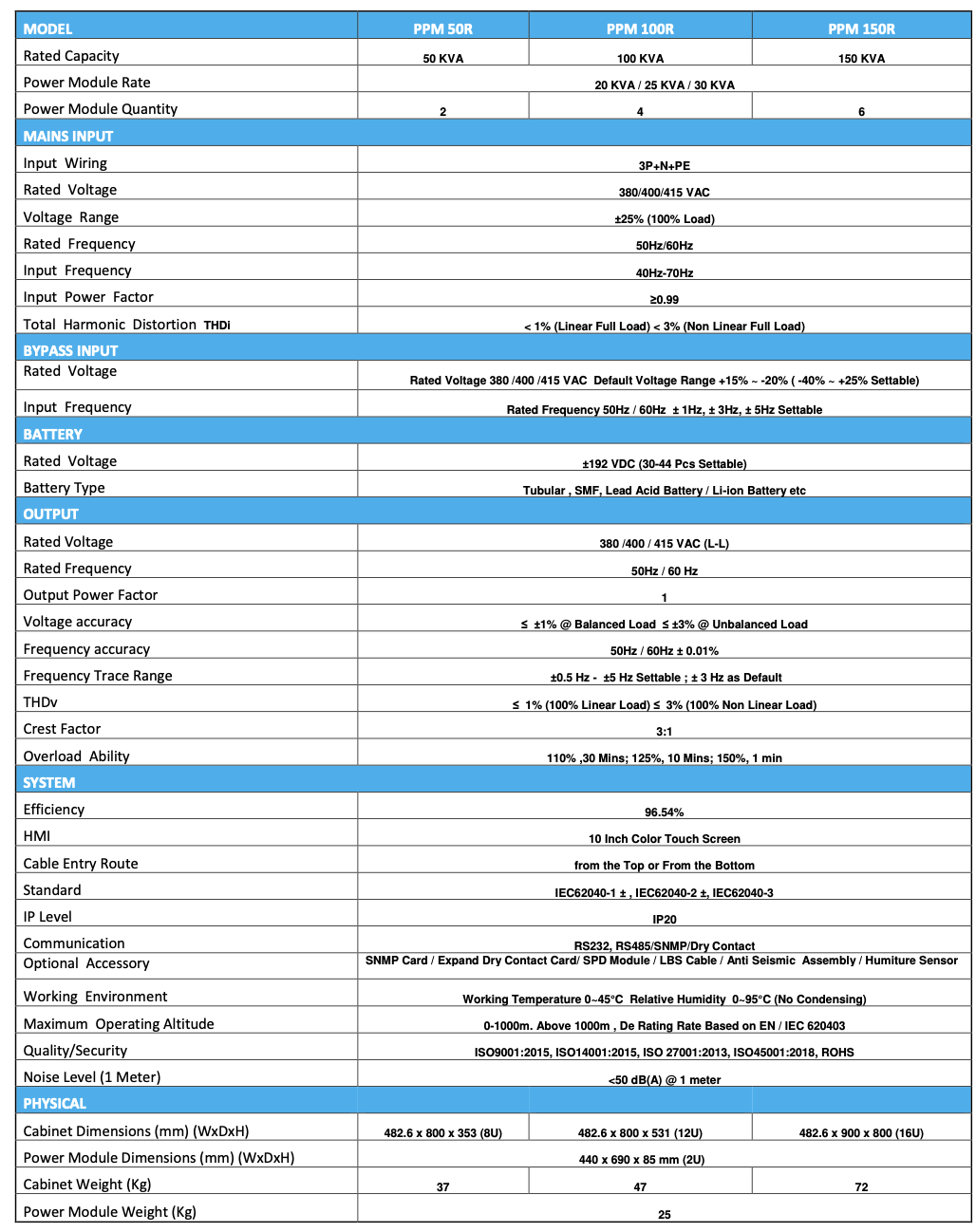

Specification Sheet 1

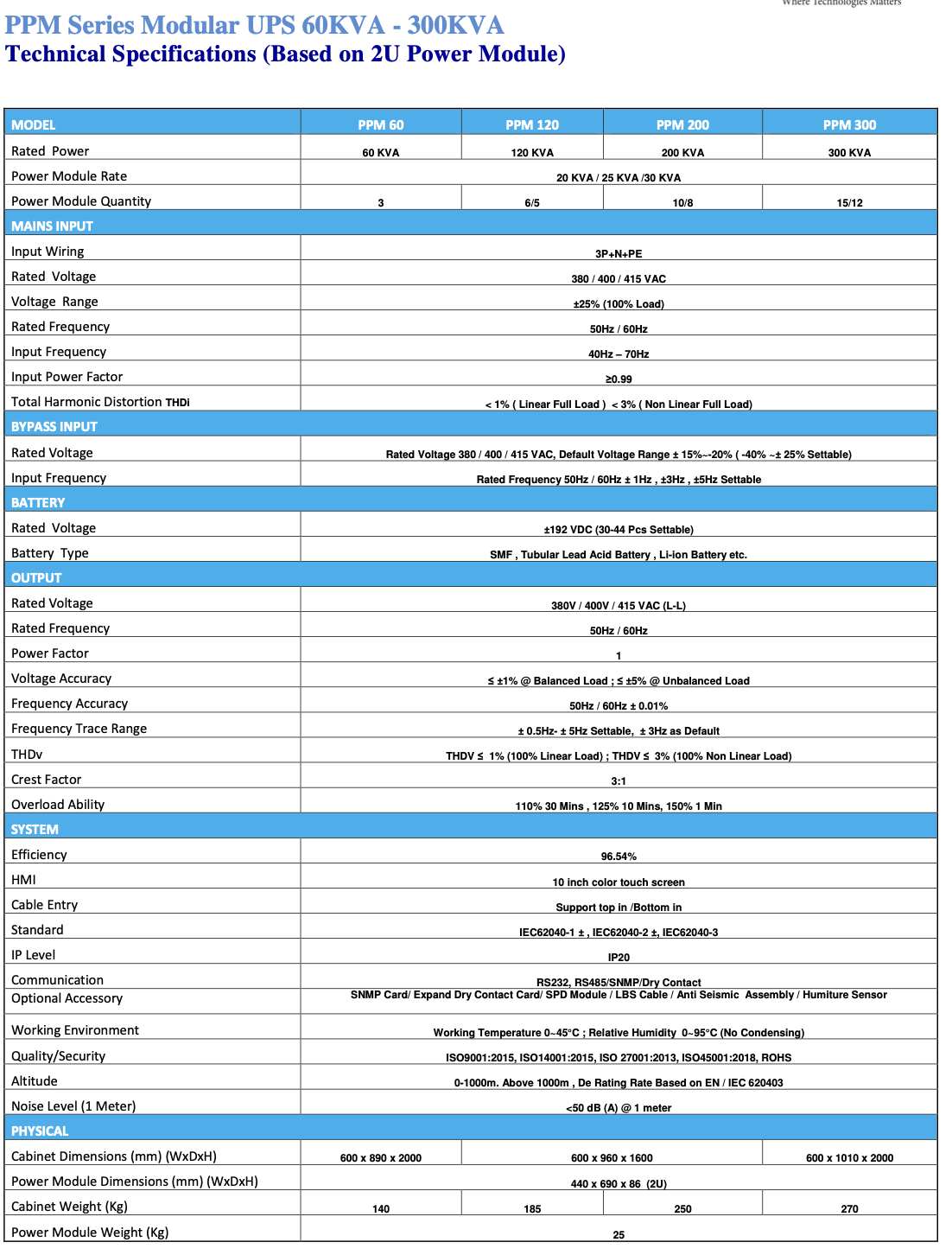

Specification Sheet 2
